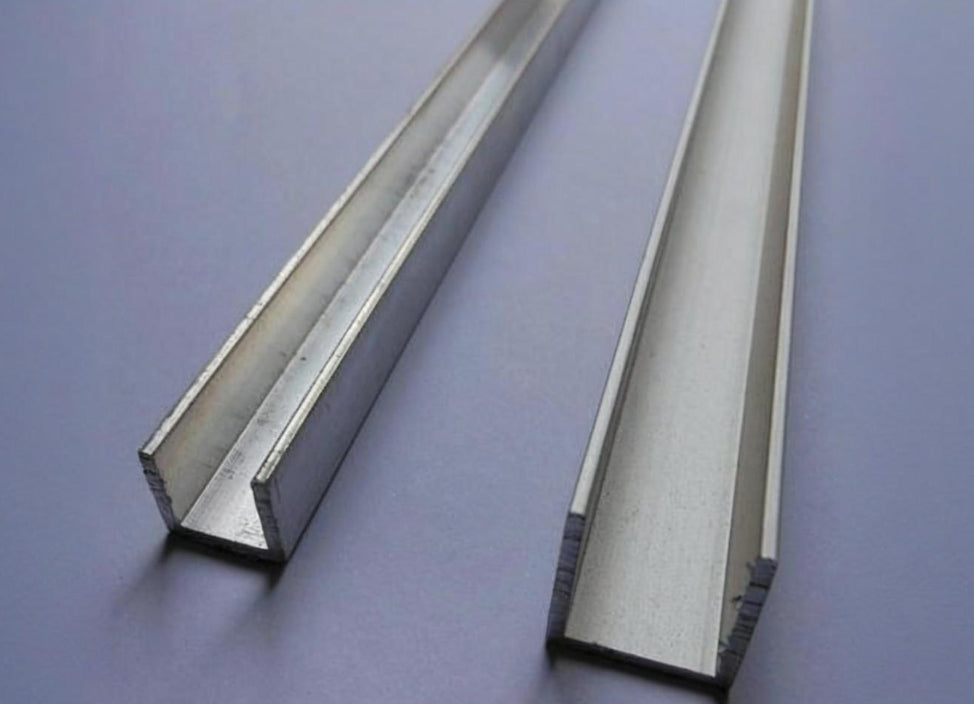

Certified Stainless Steel C Channel | ASTM/JIS-Compliant 201-430
Certified Stainless Steel C Channel | ASTM/JIS-Compliant 201-430
Couldn't load pickup availability
Certified Stainless Steel C Channel | ASTM/JIS-Compliant 201-430
Product Specifications
| Property | AISI 201-430 | Surface Finish | Dimensions | Hardness |
|---|---|---|---|---|
| Grades | 201, 202, 304, 316L, 310S, 321, 410, 420, 430 | Cold Rolled, Polished, Pickled, Brushed | Height: 20–200 mm, Width: 10–100 mm, Thickness: 1.5–12 mm (web1) | 1/4 Hard (HRB 70–85), Full Hard (HRB ≥90) |
| Tensile Strength | 520–860 MPa (web1) | Mirror, Hairline, Satin | Length: 6m–12m (web1) | Annealed (HV 150–200) |
| Yield Strength | 210–450 MPa | Electrolytic Passivation | Custom cuts available | Cold Worked (HV 250–350) |
| Elongation | 35%–55% | Laser Etching for Traceability | Tolerance: ±0.1mm (web4) | ASTM A666 Compliant (web4) |
Key Performance & Technical Details
Tensile & Bend Strength
Our stainless steel c channel grades, including AISI 316L and 310S, deliver tensile strengths up to 860 MPa (web1), ideal for structural frameworks requiring resistance to deformation. For example, AISI 316L’s molybdenum content enhances stress corrosion cracking resistance, making it suitable for stainless steel unistrut channel systems in marine environments. The bend strength of AISI 430 (450 MPa yield) ensures durability in load-bearing applications like industrial shelving.
Weight Calculation
Calculate the weight of a stainless steel c channel using:
Weight (kg) = [(Height × Width × Thickness) – (Web Thickness²)] × Length × Density (7.93 g/cm³)
For a 50mm × 30mm × 3mm channel (6m length), weight ≈ 8.2 kg. Custom calculators are available for complex profiles (web4).
Why Stainless Steel Rusts
Despite inherent corrosion resistance, factors like:
- Chloride Exposure: Coastal or chemical environments degrade chromium oxide layers (web1).
- Galvanic Corrosion: Contact with dissimilar metals (e.g., carbon steel) accelerates oxidation.
- Poor Surface Finish: Rough surfaces trap moisture and contaminants (web5).
Our channels undergo electrolytic passivation (web4) to restore protective chromium layers, validated by salt spray tests exceeding 1,000 hours.
Identification & Marking
Each stainless steel c channel is laser-etched with:
- Grade (e.g., AISI 316L)
- Batch ID (for ISO 9001 traceability)
- Certification Marks (ASTM A554, JIS G4303)
QR codes link to mill test reports (web4), ensuring compliance with global export standards.
Compatibility & Applications
- nds mini channel stainless steel screws: Precision-engineered to fit our channels’ 1.5–12mm thickness range, ensuring secure fastening for HVAC and solar panel installations.
- stainless steel unistrut channel: Seamlessly integrates with our C channels for modular support systems in data centers and industrial plants (web5).
Why Choose Our Stainless Steel C Channels?
- Certified Material Excellence:
- Direct sourcing from mills like POSCO and Outokumpu (web4), with full ASTM/JIS documentation.
- Customizable finishes (polished, brushed) for architectural or hygienic applications (web5).
- Global Export Readiness:
- Pre-cut 6m–12m lengths (web1), packaged for海运或空运 with anti-rust VCI films.
- MOQ flexibility: 10 tons for bulk orders, with volume discounts.
- Technical Support:
- Free CAD files and load-bearing calculations for stainless steel unistrut channel designs.
- 24/7 corrosion resistance consulting via metallurgical experts.
- Sustainability:
- Recyclable materials with 75% recycled content, aligned with ISO 14001 standards.
