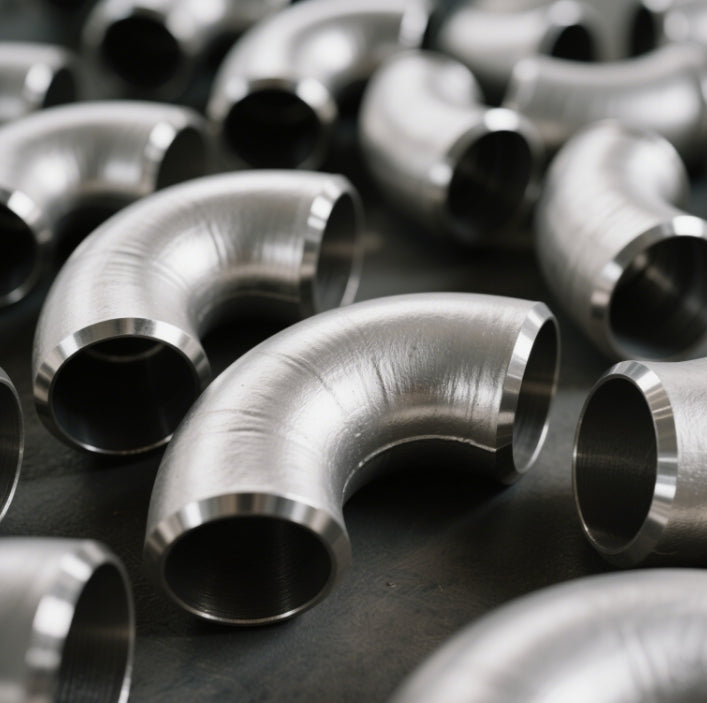

Custom-Built Stainless Steel 90 Degree Elbow | Precision Welding
Product Specifications
| Attribute | Details |
|---|---|
| Material Grades | 304, 316L, stainless steel 90 degree elbow 1 2 (1/2"–48" variants) |
| Diameter Range | stainless steel 45 degree elbow dimensions: 1/2"–48" (DN15–DN1200) |
| Wall Thickness | SCH5S, SCH10, SCH40, SCH80, XXS (Customizable) |
| Surface Finish | Mirror Polished, Electro-Polished, stainless steel 45 elbow (HL finish) |
| Hardness (HV) | 150–220 (Annealed), 250–320 (Cold Rolled) |
| Tensile Strength | ≥520 MPa (304), ≥860 MPa (316L) |
| Yield Strength | ≥205 MPa (304), ≥450 MPa (316L) |
| Operating Temperature | -50°C to 800°C (Short-term: 900°C) |
| Certifications | ASME B16.9, DIN 2605, ISO 9001, 3A Sanitary (Food Grade) |
| Connection Type | Butt-Weld, Threaded, Grooved, Tri-Clamp (Sanitary) |
Technical Properties
Tensile & Bend Strength
Our stainless steel 90 degree elbow 1 2 is engineered for high-pressure systems, with tensile strength exceeding 860 MPa for 316L variants, ideal for corrosive environments like marine exhausts or chemical plants. The bend strength is enhanced using mandrel-forming techniques to prevent wall thinning and maintain structural integrity under thermal cycling. For stainless steel 45 elbow designs, cold-rolled grades achieve 1.5D–3D radii, reducing turbulence and pressure drop in HVAC or pharmaceutical pipelines.
Weight Calculation
Calculate elbow weight using:
Example: A stainless steel 45 degree elbow dimensions (SCH40, 2" diameter, 4mm wall thickness) weighs ~0.85 kg.
Identification Methods
- Laser Etching: ASTM/EN codes (e.g., "316L" or "ASME B16.9") for traceability.
- QR Codes: Linked to mill test reports (MTRs) with chemical composition and heat treatment data.
Why Stainless Steel Rusts & Prevention
While stainless steel resists rust through its chromium oxide layer (≥10.5% Cr), specific conditions compromise protection:
- Chloride Exposure: Coastal or industrial environments trigger pitting in stainless steel 45 elbow if passivation is incomplete.
- Mechanical Damage: Scratches on mirror-polished surfaces expose the base metal. Use non-abrasive cleaning tools.
- Galvanic Corrosion: Contact with carbon steel or aluminum accelerates degradation. Isolation gaskets are recommended.
- Organic Contaminants: Food residues or pollutants degrade the passive layer. Clean biweekly with pH-neutral solutions.
Prevention Tips:
- Post-installation passivation with nitric acid.
- Avoid chloride-based cleaners.
- Regular visual inspections for surface defects.
Applications
- Industrial: stainless steel 90 degree elbow 1 2 for petrochemical pipelines and nuclear plants.
- Food & Pharma: 3A-certified stainless steel 45 elbow with electro-polished interiors for hygiene.
- Architectural: HL-finished elbows for anti-slip façades.
Why Choose Our Stainless Steel Elbows?
- Precision Engineering: Mandrel-formed stainless steel 45 degree elbow dimensions ensure ±0.05mm tolerance for leak-proof systems.
- Global Compliance: ASME B16.9, DIN 2605, and 3A Sanitary certifications.
- Custom Solutions: Tailored radii (1D–40D), perforations, or threaded ends.
- Fast Delivery: 90% of orders ship within 7 days, including sanitary and high-pressure variants.
- 15-Year Warranty: Anti-corrosion guarantee for industrial use.
Why Us?
With ISO 9001 certification and 20+ years of expertise, our custom-built elbows are trusted by Fortune 500 companies for projects demanding aerospace-grade precision. From pharmaceutical cleanrooms to offshore oil rigs, we deliver solutions that redefine durability.
