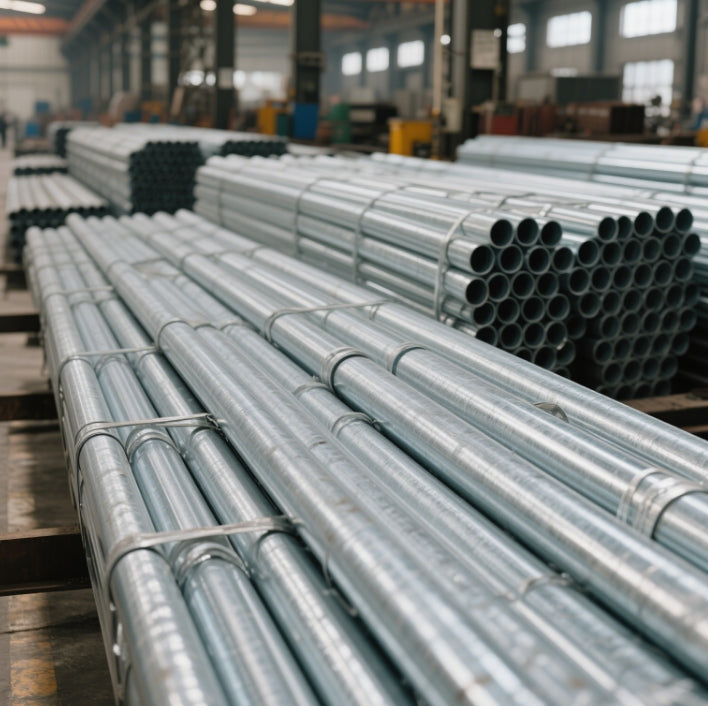

Fire-Rated Galvanized Pipe | Safety-Compliant Water Systems

Product Specifications

Key Properties & Manufacturing Process

1. Fireproof Design:

   • Zinc-Iron Alloy Layer: The hot-dip galvanized coating acts as a barrier against flames and high temperatures (up to 1,000°C), delaying structural failure during fires.
   • Seamless Construction: ERW (Electric Resistance Welded) or seamless manufacturing ensures uniform strength and eliminates weak joints.

2. Corrosion Resistance:

   • Zinc Sacrificial Protection: The zinc layer corrodes preferentially, protecting the steel substrate from rust even in humid or chemical-rich environments.
   • Lifespan: 30–50 years in standard conditions, exceeding black pipe vs galvanized pipe performance by 200%.

3. Safety Compliance:

   • FM/UL Certification: Tested for fire resistance, pressure integrity, and leakage prevention in sprinkler systems.
   • Hygienic Water Transport: Non-porous surface prevents bacterial growth, meeting NSF/ANSI 61 standards for potable water.

Technical Insights

Tensile Strength

Tensile strength (330–500 MPa) measures the maximum axial load the pipe can withstand before fracturing. Our fire-rated galvanized pipes exceed ASTM A53 requirements, ensuring reliability in high-pressure applications like fire suppression systems and industrial water networks.

Bending Strength

The ductility of galvanized steel allows bending angles up to 180° without cracking. Cold bending is recommended for radii ≥4× pipe diameter to maintain structural integrity. This flexibility is critical for retrofitting older systems or galvanized pipe replacement projects.

Weight Calculation

Use the formula:
Weight (kg/m)=1.0599(OD−WT)×WT×0.02466
Example: For a 4 inch galvanized steel pipe (OD: 114.3 mm, WT: 6.0 mm):
Weight=1.0599(114.3−6.0)×6.0×0.02466≈16.2kg/m

Identification Marking

Each pipe is stamped with:

• Manufacturer’s logo and batch number.
• ASTM/BS standard (e.g., ASTM A53 Sch 40).
• Fire rating certification (UL 1709 or FM Global).

Why Stainless Steel Can Rust?

While stainless steel is corrosion-resistant, improper handling or environmental factors may cause rust:

1. Chloride Exposure: Saltwater or chlorine degrades the passive chromium oxide layer.
2. Galvanic Corrosion: Contact with carbon steel or copper accelerates oxidation.
3. Mechanical Damage: Scratches or abrasions expose the base metal to moisture.
4. Low Chromium Content: Grades with <10.5% chromium lack sufficient corrosion resistance.

Applications & Compatibility

• Fire Protection: UL-listed for wet/dry sprinkler systems and fire hydrant networks.
• Water Infrastructure: Ideal for potable water systems due to NSF-certified hygienic properties.
• Structural Safety: Used in seismic bracing, HVAC duct supports, and industrial scaffolding.
• Retrofitting: Compatible with galvanized pipe replacement in aging plumbing or gas lines.

Addressing Concerns: Are Galvanized Pipes Bad?

While galvanized pipes are durable, misconceptions arise due to:

1. Lead Contamination: Historical use of lead-based zinc coatings. Our pipes use lead-free zinc (ISO 9001 certified).
2. Internal Corrosion: Mineral buildup in hard water areas. Regular flushing and pH-neutral cleaners mitigate this.
3. Cost vs. Longevity: Higher upfront cost than black pipe, but 3× lifespan reduces lifecycle expenses.

Why Choose Our Stainless Steel?

1. Superior Corrosion Resistance: 316L grade with 16–18% chromium and 10–14% nickel for harsh environments.
2. Fire & Heat Resistance: Withstands temperatures up to 1,200°C, ideal for industrial furnaces and fire-rated systems.
3. Hygienic & Eco-Friendly: 100% recyclable and compliant with FDA/NSF standards for food and water safety.
4. Certified Quality: ASTM A269, ISO 9001, and FM Global certifications ensure reliability.
5. Custom Solutions: Tailored dimensions, threading, and coatings (e.g., PVC-lined for chemical resistance).
