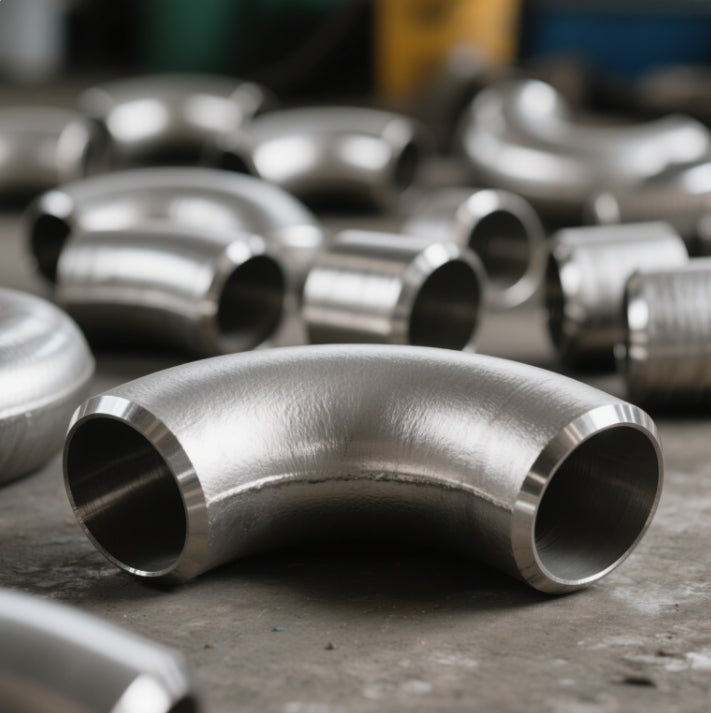

Heavy-Duty Stainless Steel 90 Degree Elbow for Industrial Use
Heavy-Duty Stainless Steel 90 Degree Elbow for Industrial Use
Couldn't load pickup availability
Heavy-Duty Stainless Steel 90 Degree Elbow for Industrial Use
Product Specifications
| Attribute | Details |
|---|---|
| Material Grades | stainless steel elbow (304, 316L, 321), 5 inch 90 degree exhaust elbow stainless steel (high-temperature variants) |
| Diameter Range | 1/2" to 48" (DN15–DN1200) |
| Wall Thickness | SCH5S, SCH10, SCH40, SCH80, XXS (Customizable) |
| Surface Finish | Mirror Polished, Electro-Polished, HL (Hairline), Sandblasted |
| Hardness (HV) | 150–220 (Annealed), 250–320 (Cold-Rolled) |
| Tensile Strength | ≥520 MPa (304), ≥860 MPa (316L) |
| Yield Strength | ≥205 MPa (304), ≥450 MPa (316L) |
| Operating Temperature | -50°C to 800°C (Short-term: 900°C) |
| Certifications | ASTM A403, ASME B16.9, DIN 2605, ISO 9001, 3A Sanitary (Food Grade) |
| Connection Type | Butt-Weld, Threaded, Grooved, Tri-Clamp (Sanitary) |
Technical Properties
Tensile & Bend Strength
Our stainless steel exhaust elbows are engineered for high-pressure industrial systems. The tensile strength of 316L-grade elbows exceeds 860 MPa, ensuring structural integrity in corrosive environments like chemical plants or marine exhaust systems. Bend strength is optimized through cold-forming processes, achieving a 1.5D–3D radius for smooth fluid flow and reduced turbulence. For 5 inch 90 degree exhaust elbow stainless steel, wall thickness (SCH40 or higher) and mandrel-bending techniques prevent deformation under extreme thermal cycling.
Weight Calculation
Calculate elbow weight using:
Example: A 5 inch 90 degree exhaust elbow (SCH40, 114mm diameter, 6mm wall thickness) weighs ~1.2 kg.
Identification Methods
- Laser Etching: ASTM/EN codes (e.g., "316L" or "ASTM A403") for traceability.
- QR Codes: Linked to mill test reports (MTRs) with chemical composition and heat treatment data.
Why Stainless Steel Rusts & Prevention
While stainless steel elbows resist rust due to their chromium oxide layer (≥10.5% Cr), specific conditions trigger corrosion:
- Chloride Exposure: Coastal or industrial environments cause pitting in 5 inch 90 degree exhaust elbow stainless steel if passivation is incomplete.
- Mechanical Damage: Scratches on polished surfaces expose the base metal. Use non-abrasive cleaning tools.
- Galvanic Corrosion: Contact with carbon steel or aluminum in stainless steel exhaust elbows accelerates degradation. Isolation gaskets are recommended.
- Organic Contaminants: Food residues or pollutants degrade the passive layer. Clean biweekly with pH-neutral solutions.
Prevention Tips:
- Post-installation passivation with nitric acid.
- Avoid chloride-based cleaners.
- Regular visual inspections for surface defects.
Applications
- Industrial Exhausts: stainless steel exhaust elbows for automotive, marine, and HVAC systems.
- Chemical Processing: 316L-grade elbows for acid/alkali transport.
- Food & Pharma: 3A-certified stainless steel elbow with electro-polished interiors for hygiene.
Why Choose Our Stainless Steel Elbows?
- Premium Durability: stainless steel exhaust elbows undergo hydrostatic testing (1.5x rated pressure) and 100% radiographic inspection.
- Custom Solutions: Tailored dimensions (e.g., 5-inch short-radius bends) and finishes (mirror/satin).
- Fast Delivery: 90% of orders ship within 7 days, including 3A-sanitary and high-pressure variants.
- Global Compliance: ASME, DIN, and ISO certifications for cross-industry compatibility.
- 15-Year Warranty: Anti-corrosion guarantee for industrial applications.
Why Us?
With 20+ years of expertise, we specialize in high-performance stainless steel elbows trusted by Fortune 500 companies. Our ISO 9001-certified facilities combine aerospace-grade precision with cost efficiency, delivering solutions that outlast competitors. From marine exhaust systems to pharmaceutical pipelines, we redefine durability.
