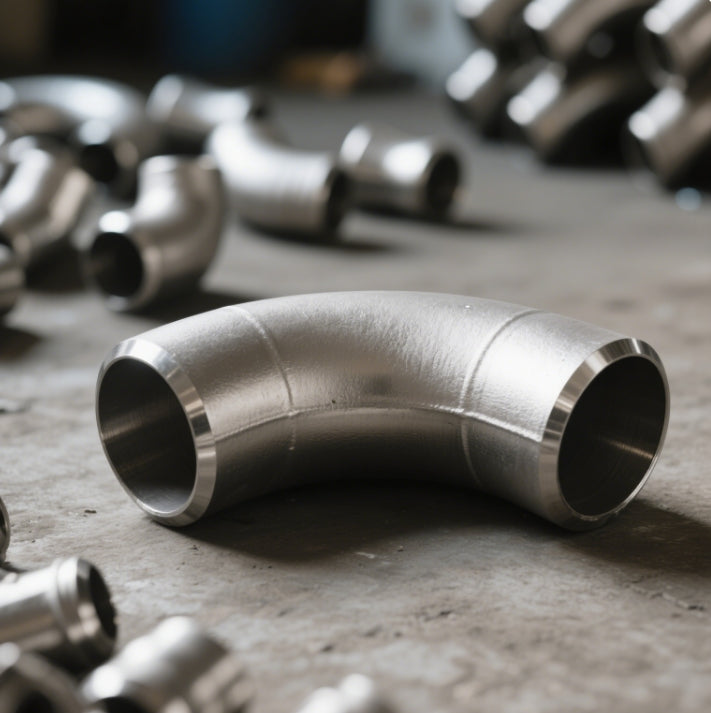

High-Flow Stainless Steel 90 Degree Elbow | 5" Exhaust Systems
Product Overview
Our stainless steel elbow fitting is engineered for high-performance industrial and commercial exhaust systems, offering superior durability, corrosion resistance, and seamless fluid/gas redirection. Designed to meet ASME B16.9, DIN 2605, and ANSI standards, this 90-degree elbow ensures optimal flow efficiency and structural integrity in demanding environments.
Technical Specifications
| Category | Details |
|---|---|
| Material | 304/316L Stainless Steel (AISI-certified) |
| Angle | 90° (Long Radius: 1.5D, Short Radius: 1D) |
| Size Range | 1/2" to 10" (DN15–DN250), with custom sizes up to 48" available |
| Wall Thickness | Sch5s, Sch10, Sch40, Sch80, Sch160 (ASME B36.19M compliant) |
| Pressure Rating | High Pressure (150 lb to 6000 lb) |
| Surface Finish | Mirror Polished / Sanitary Grade (Ra ≤ 0.8 μm) |
| Connection Type | Butt-Welded / Stainless Steel Elbow Threaded (NPT, BSPT) |
| Certifications | ASME, ANSI, DIN, JIS, ISO 9001, PED 2014/68/EU |
| Temperature Range | -40°F to 1200°F (-40°C to 650°C) |
| Hardness | 70-90 HRB (Rockwell B Scale) |
Key Attributes
1. Tensile & Bend Strength
The stainless steel elbow exhibits exceptional tensile strength (≥515 MPa for 304, ≥485 MPa for 316L) and bend strength, ensuring resistance to deformation under high-pressure conditions. Rigorous testing, including hydrostatic and ultrasonic inspections, guarantees compliance with international mechanical performance standards.
2. Identification & Marking
Each elbow is laser-etched with:
- Material Grade (e.g., 304, 316L)
- Size (OD × Wall Thickness)
- Certification Marks (ASME, DIN)
- Manufacturer’s Logo (traceability ensured).
3. Weight Calculation
Weight (kg) = × 1.5 (for 90° factor).
Example: A 5" Sch40 elbow (OD: 141.3mm, WT: 6.55mm) weighs approximately 4.2 kg.
4. Corrosion Resistance & Anti-Rust Mechanism
Our stainless steel elbow manufacturers prioritize chromium-nickel alloy composition (18% Cr, 8% Ni for 304; 16% Cr, 10% Ni, 2% Mo for 316L), forming a passive oxide layer that prevents oxidation. Despite this, localized rust may occur due to:
- Chloride Exposure: Aggressive environments (e.g., coastal areas) may cause pitting.
- Mechanical Damage: Scratches or weld splatter disrupting the passive layer.
- Improper Cleaning: Residual contaminants accelerating oxidation.
Manufacturing Process
- Material Selection: Premium-grade stainless steel billets sourced from audited mills.
- Forging/Forming: Hot extrusion or mandrel forming for seamless integrity.
- Welding: TIG welding with ER308/316L filler for welded elbows.
- Surface Treatment: Electro-polishing or passivation to enhance corrosion resistance.
- Quality Assurance: 100% radiographic testing (RT) and hydrostatic pressure checks.
Why Choose Our Stainless Steel Elbow?
- Unmatched Durability: Engineered for harsh environments (chemical, marine, HVAC).
- Customization: Tailored sizes, angles, and threading (NPT, BSPT) to fit unique systems.
- Certified Quality: Third-party audited (ISO 9001, PED) with full material traceability.
- Global Compliance: Meets ASME, DIN, JIS, and GB standards for international projects.
- Sanitary Design: Mirror-polished finish ideal for food, pharma, and biotech industries.
Why Us?
As leading stainless steel elbow manufacturers, we combine decades of metallurgical expertise with cutting-edge production technology. Our elbows undergo 12+ quality checks, including spectral analysis and pressure testing, ensuring reliability in critical applications. Partner with us for ISO-certified solutions that reduce downtime and lifecycle costs.
