Industrial-Grade Stainless Steel Metal Plate | 06Cr18Ni11Ti Specification
Product Overview

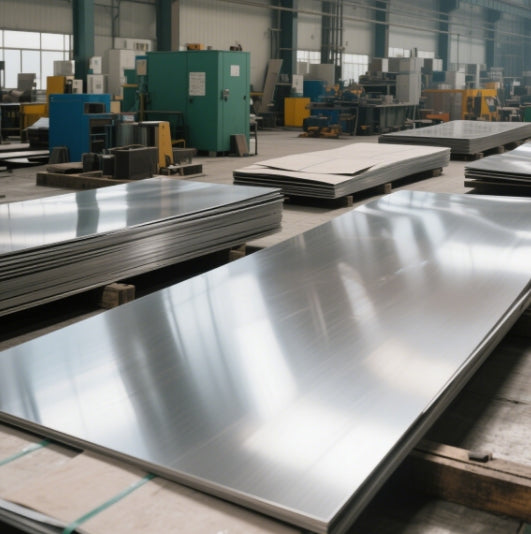

06Cr18Ni11Ti (equivalent to ASTM 321) is a titanium-stabilized austenitic stainless steel plate designed for high-temperature and corrosive environments. Its superior mechanical properties, corrosion resistance, and versatility make it ideal for industrial applications such as stainless steel bbq plate, stainless steel cover plates for appliances, and stainless steel cover plates plumbing.
Technical Specifications
| Category | Details |
|---|---|
| Standard | GB/T 20878-2007, ASTM A240 (321), EN 10088-2 (X6CrNiTi18-10), JIS SUS321 |
| Chemical Composition | C ≤0.08%, Si ≤1.00%, Mn ≤2.00%, Cr 17.00–19.00%, Ni 9.00–12.00%, Ti ≥5×C% |
| Hardness | ≤187 HB (Brinell), ≤90 HRB (Rockwell B), ≤200 HV (Vickers) |
| Dimensions | Thickness: 0.5–50 mm, Width: 1000–2000 mm, Length: Customizable |
| Processing | Cold Rolled / Hot Rolled, Annealed, Pickled, Polished (No. 1, 2B, BA, etc.) |
Key Properties
-
Tensile Strength
- ≥520 MPa: High tensile strength ensures durability under heavy loads and stress, suitable for structural components in stainless steel cover plates plumbing and industrial machinery .
- Yield Strength: ≥205 MPa, providing excellent resistance to deformation .
-
Bending Strength
- Superior bendability (up to 180° without cracking) due to its austenitic structure, ideal for forming stainless steel bbq plate shapes and appliance components .
-
Weight Calculation
- Formula: Weight (kg) = Thickness (mm) × Width (m) × Length (m) × Density (7.9 g/cm³).
- Example: A 2 mm thick plate (1m × 2m) weighs 31.6 kg (2 × 1 × 2 × 7.9).
-
Identification & Marking
- Standard markings include 06Cr18Ni11Ti (GB), S32100 (ASTM), 1.4541 (DIN), and X6CrNiTi18-10 (EN) .
-
Why Stainless Steel Rusts?
- Chloride Exposure: Prolonged contact with chlorides (e.g., seawater, cleaning agents) can cause pitting corrosion .
- Surface Contamination: Iron particles or dirt may induce localized rusting. Regular cleaning is recommended.
- Improper Heat Treatment: Poorly controlled annealing or welding can reduce corrosion resistance .
Applications
- High-Temperature Environments: Exhaust systems, boilers, and stainless steel bbq plate components .
- Corrosive Media: Chemical tanks, stainless steel cover plates for appliances, and pipelines .
- Sanitary Uses: Food processing equipment, pharmaceutical machinery, and stainless steel cover plates plumbing .
Why Choose Our Stainless Steel Plates?
- Premium Quality: Strict adherence to ASTM, EN, and GB standards ensures consistency and reliability .
- Customization: Tailored dimensions, surface finishes, and processing methods to meet unique project needs .
- Competitive Pricing: Direct factory pricing with no intermediaries, reducing costs by 15–20% .
- Fast Delivery: Over 10,000 tons of ready stock for immediate shipment .
- Technical Support: Expert guidance on material selection, welding, and maintenance .
