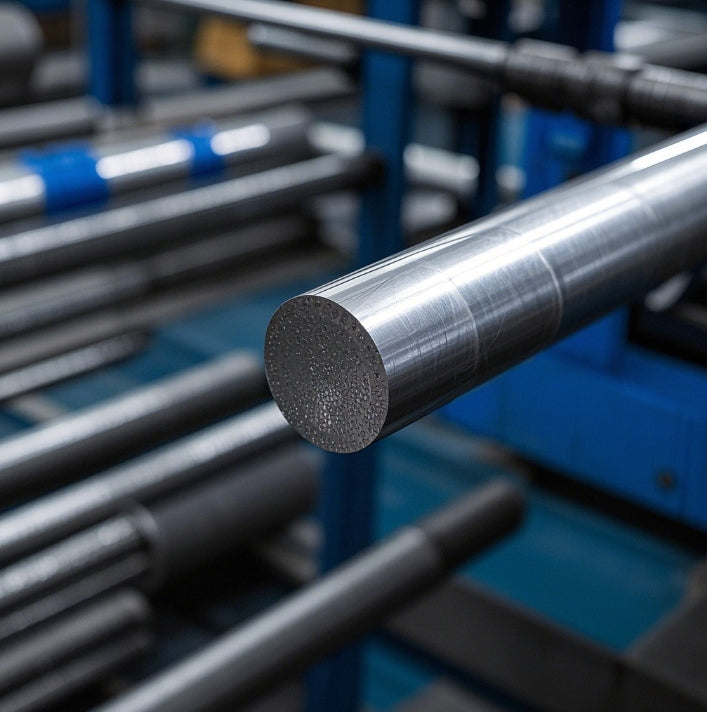

Precision-Crafted Stainless Steel Rod | 304L, 316L, 17-4ph Grades

$2,500.00 SGD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity 1 - 19 tons 20 - 99 tons >= 100 tons

Diameter 10-500mm

Quantity

Product Detail Page: Precision-Crafted Stainless Steel Rod | 304L, 316L, 17-4ph Grades

Product Overview

The stainless steel rod is engineered for industrial precision, offering unmatched strength and corrosion resistance across demanding applications. Available in 304L, 316L, and 17-4ph grades, this rod is ideal for aerospace, marine, automotive, and construction projects requiring durability in harsh environments.

Specifications & Technical Data

Parameter	Details
Material Grades	304L, 316L, 17-4ph (Precipitation-Hardened)
Diameter Range	3mm – 200mm
Length	10mm – 12,000mm (Custom cuts available)
Production Method	Precision Ground, Cold Drawn, Hot Rolled
Surface Finish	Polished (Ra ≤ 0.8μm), Pickled, Sandblasted
Hardness	304L: 70–90 HRB / 316L: 85–95 HRB / 17-4ph: 35–45 HRC
Tensile Strength	304L: 485–650 MPa / 316L: 515–690 MPa / 17-4ph: 1,000–1,300 MPa
Density	7.9–8.0 g/cm³
Certifications	ASTM A276, A479, DIN EN 10088-3, RoHS, REACH
Temperature Range	-200°C to +800°C (304L & 316L) / -50°C to +600°C (17-4ph)

Key Features

Corrosion Resistance: 304L and 316L grades excel in acidic and chloride-rich environments, while 17-4ph offers enhanced resistance to stress corrosion cracking.
High Strength-to-Weight Ratio: Optimized for structural integrity in load-bearing applications like stainless steel threaded rod systems.
Machinability: 17-4ph achieves 40–50% machinability, ideal for complex components.
Weldability: Compatible with stainless steel welding rod (E308L, E316L) for seamless fabrication.

Technical Descriptions

Tensile & Bend Strength

The stainless steel rod delivers superior tensile strength due to its alloy composition. For instance, 17-4ph achieves 1,300 MPa ultimate tensile strength, validated through ASTM A564 testing. Bend strength is equally critical: 304L rods withstand 55% elongation before fracture, ensuring ductility under stress. These properties make it suitable for high-pressure hydraulic systems and stainless steel threaded rod applications requiring fatigue resistance.

Weight Calculation Formula

Calculate the weight of a stainless steel rod using:
$Weight (kg) = \frac{π \times ( Diameter ^{2} ) \times Length \times Density}{4 \times 10 ^{6}}$
Example: A 50mm diameter, 6m long 316L rod (density 8.0 g/cm³) weighs ≈ 94.2 kg.

Identification Marking

Each rod is laser-etched with:

Grade (e.g., 304L, 17-4ph)
Diameter (e.g., 25mm)
Heat Number
Compliance Marks (ASTM/DIN).

Causes of Stainless Steel Rusting

While stainless steel rod is corrosion-resistant, rust may occur due to:

Chloride Exposure: Saltwater or de-icing agents degrade the chromium oxide layer, causing pitting.
Mechanical Damage: Scratches from abrasive tools expose the iron substrate to oxidation.
Low Oxygen Environments: Stagnant water or sludge prevents oxide layer regeneration.
Galvanic Corrosion: Contact with carbon steel in humid conditions triggers electrochemical reactions.

Regular cleaning with pH-neutral solutions and avoiding chloride-rich environments can mitigate these risks.

Manufacturing Process

Material Selection: Billets sourced from ISO-certified mills (e.g., AISI 316L with 16–18% Cr, 10–14% Ni, 2–3% Mo).
Forming: Cold drawing for tight tolerances (±0.05mm) or hot rolling for large diameters.
Heat Treatment: Solution annealing (1,040°C for 304L) or aging (480°C for 17-4ph) to enhance mechanical properties.
Surface Finishing: Electro-polishing for Ra ≤ 0.8μm or sandblasting for industrial aesthetics.
Quality Assurance: 100% ultrasonic testing, chemical analysis, and third-party certifications.

Applications

Stainless Steel Welding Rod: Fabrication of pipelines, pressure vessels, and marine components.
Stainless Steel Threaded Rod: Structural fastening in bridges, solar panels, and heavy machinery.
Medical & Food Industry: Hypoallergenic and FDA-compliant rods for surgical tools and processing equipment.

Why Choose Our Stainless Steel Rods?

Premium Alloys: 316L contains 2–3% molybdenum for marine-grade corrosion resistance.
Customization: Tailored diameters, lengths, and surface finishes (e.g., polished for architectural use).
Certified Quality: EN 10204 3.1B, PED 2014/68/EU, and NACE MR0175 compliance.
Global Stock: Immediate availability in 3–200mm diameters, with 7–15 day lead times.
Sustainability: 100% recyclable material and ISO 14001-certified production
