StockSteel

Premium 304 Stainless Steel Plate | Heat-Resistant & Durable

$1,630.00 SGD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity 1 - 19 tons 20 - 99 tons >= 100 tons

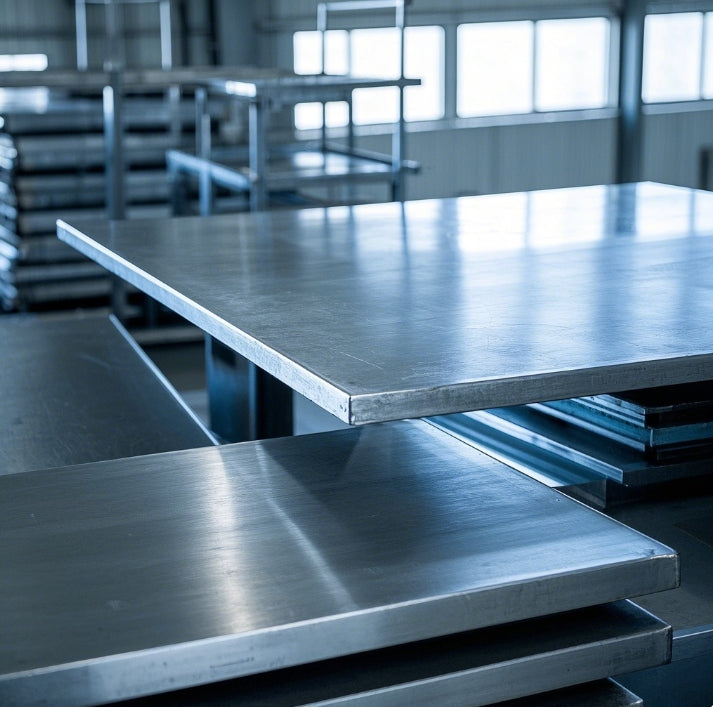

Product Detail Page: Premium 304 Stainless Steel Plate

Technical Specifications

Material: 304 stainless steel plate (Grade 304/304L dual-certified)
Standard: ASTM A240, AISI, JIS, DIN, EN, GB
Surface Finish: Cold Rolled (2B), Hot Rolled (NO.1), BA (Bright Annealed), Hairline, Mirror Polish
Thickness Range: 0.3mm – 110mm

Width: 1000mm – 2500mm

Length: 1000mm – 8000mm (Customizable)

Hardness (Rockwell): ≤92 HRB (Annealed), ≤201 HBW

Property	Value
Tensile Strength	515–1035 MPa
Yield Strength	≥205 MPa
Elongation (50mm)	≥40%
Melting Point	1398–1454°C
Density	7.93 g/cm³
Thermal Conductivity	16.3 W/m·K (at 100°C)

Key Features

Heat Resistance: Withstands temperatures up to 800°C, ideal for boilers, heat exchangers, and industrial furnaces.
Corrosion Resistance: Excellent resistance to oxidation, acids, and chlorides, perfect for stainless steel rail tie plates in marine environments.
Durability: High tensile and yield strength ensure structural integrity under heavy loads.
Aesthetic Versatility: Available in polished, hairline, or brushed finishes for architectural or stainless steel dining plates applications.

Mechanical & Chemical Properties

Tensile & Bend Strength

The 304 stainless steel plate exhibits exceptional tensile strength (515–1035 MPa) and bend strength due to its austenitic structure. At elevated temperatures (up to 538°C), it retains 386 MPa tensile strength, making it suitable for high-stress components like pressure vessels. Its elongation (≥40%) ensures flexibility during fabrication.

Hardness & Machinability

With Rockwell hardness ≤92 HRB and Brinell hardness ≤201 HBW, the material balances formability and wear resistance. Cold rolling enhances hardness for applications like industrial machinery parts.

Weight Calculation

Calculate plate weight using:
$Weight (kg) = Length (m) \times Width (m) \times \frac{Thickness (mm)}{1000} \times 7930 (Density)$
Example: A 2m × 1m × 10mm plate weighs 158.6 kg.

Why Stainless Steel Rusts?

Chloride Exposure: Chlorides (e.g., seawater, de-icing salts) penetrate the passive oxide layer, causing pitting.
Intergranular Corrosion: Sensitization at 450–850°C forms chromium carbides, reducing corrosion resistance.
Improper Cleaning: Contaminants like iron particles trigger galvanic corrosion.

Applications

Stainless Steel Rail Tie Plates: High-strength, corrosion-resistant solutions for railway infrastructure.
Architectural Cladding: Polished sheets for modern façades and roofing.
Stainless Steel Dining Plates: Hygienic, non-reactive surfaces for food processing and commercial kitchens.
Industrial Components: Valves, pipelines, and chemical tanks.

Why Choose Our 304 Stainless Steel Plate?

✅ Certified Quality: Compliant with ISO, SGS, and ASTM standards.
✅ Customization: Tailored dimensions (thickness, width, length) and surface finishes.
✅ Global Logistics: Fast shipping to 50+ countries with flexible payment terms (T/T, L/C).
✅ Inventory Ready: 2000+ tons in stock for urgent orders.
✅ Technical Support: Expert guidance on material selection, fabrication, and corrosion prevention.
