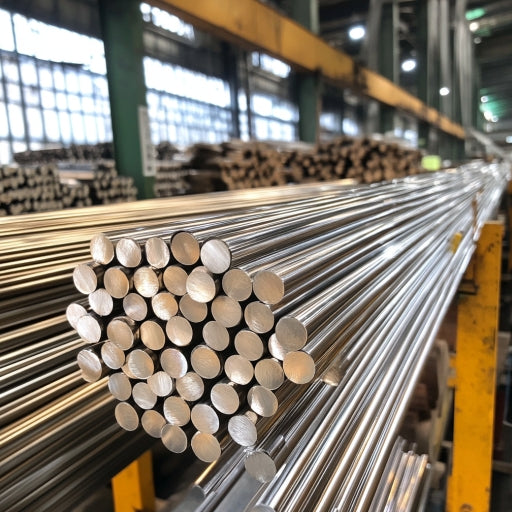

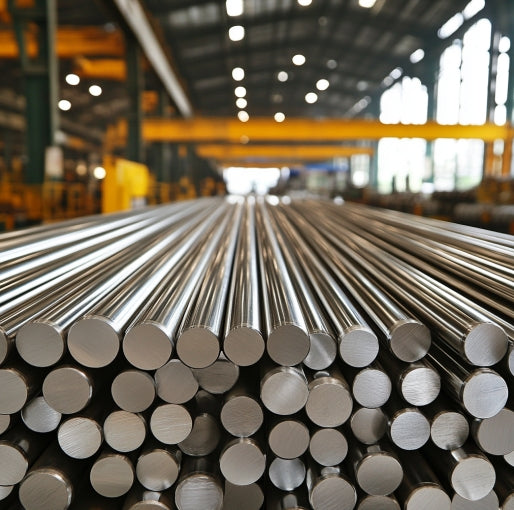

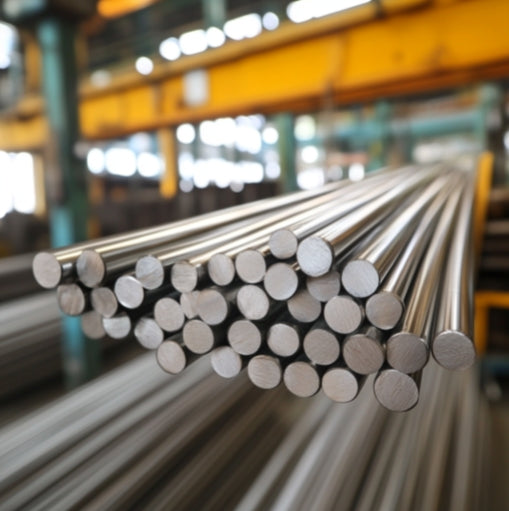

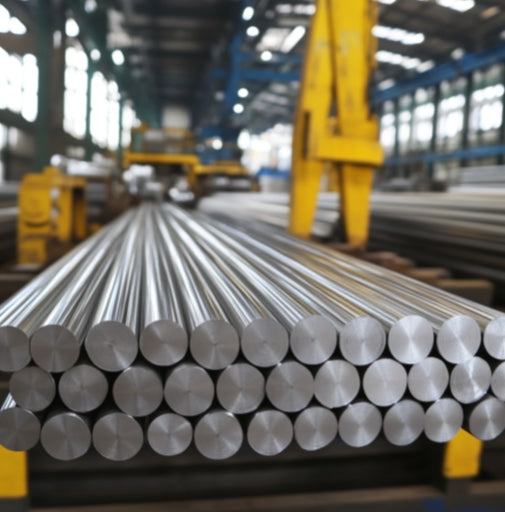

Premium-Grade Stainless Steel Round Rod Bar | AISI 201/304/430

$800.00 SGD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity 50 - 99 tons 100 - 299 tons 300 - 799 tons >= 800 tons

Dimensions Model Number:A36/1020/45#/Q345/A242/ETC Standard:JIS/AISI/ASTM/GB/DIN Surface:Natural Color Processing Service: Welding/Decoiling/Punching/Cutting Grade:20CrMo

Quantity

Premium-Grade Stainless Steel Round Rod Bar | AISI 201/304/430

Technical Specifications

Property	AISI 201	AISI 304	AISI 430
Material Grade	12Cr17Mn6Ni5N (Low-Ni Austenitic)	06Cr19Ni10 (18% Cr, 8% Ni)	10Cr17 (16–18% Cr, Ferritic)
Diameter Range	6–150 mm (±0.1 mm tolerance)	6–150 mm (±0.05 mm tolerance)	6–150 mm (±0.1 mm tolerance)
Length	3–6 m (custom lengths up to 12 m)	3–6 m (custom lengths up to 12 m)	3–6 m (custom lengths up to 12 m)
Hardness	180–200 HV	170–190 HV	150–170 HV
Tensile Strength	650–750 MPa	520–750 MPa	450–600 MPa
Surface Finish	Bright, polished, mill finish	Electropolished, brushed, hairline	2B, BA, or brushed
Certifications	ASTM A276, JIS G4303	ASTM A484, EN 10088-2	ASTM A666, RoHS

Performance Attributes

Tensile & Bending Strength

Our stainless steel round rod bar in AISI 304 delivers tensile strength up to 750 MPa, ideal for structural components requiring both corrosion resistance and load-bearing capacity, such as stainless steel bare welding filler rod in marine or chemical environments. AISI 201 (650–750 MPa) offers a cost-effective alternative for indoor applications like decorative frameworks, while AISI 430 (450–600 MPa) excels in mildly corrosive settings like automotive exhaust systems.

Identification & Traceability

Each stainless steel round rod bar is laser-etched with a unique identifier (e.g., "304-Ø20x6M") that includes grade, diameter, and batch number. This aligns with ASTM/JIS standards and simplifies quality control for projects requiring precision, such as double bar MG9-7 engraved stainless steel rods scribe for tool calibration.

Weight Calculation

Calculate the weight of a stainless steel round rod bar using:
$Weight (kg/m) = \frac{π \times ( Diameter/2 ) ^{2} \times Density}{1000}$

AISI 304/201: Density = 7.93 g/cm³ → A 20 mm rod weighs 2.48 kg/m.
AISI 430: Density = 7.70 g/cm³ → A 20 mm rod weighs 2.41 kg/m.

Why Stainless Steel Can Rust

Despite its corrosion resistance, stainless steel round rod bar may rust under specific conditions:

Chloride Exposure: Prolonged contact with seawater or de-icing salts can degrade the passive chromium oxide layer, particularly in AISI 430 (lower nickel content).
Galvanic Corrosion: Direct contact with carbon steel in humid environments accelerates oxidation. Use insulating materials for stainless steel bare welding filler rod in mixed-metal assemblies.
Surface Contamination: Iron particles from machining tools can embed into stainless steel, causing localized rust. Passivation (nitric acid treatment) restores corrosion resistance.

Manufacturing & Processing

Cold Drawing: Precision cold drawing ensures ±0.05 mm tolerance for double bar MG9-7 engraved stainless steel rods scribe, optimized for CNC machining.
Heat Treatment: AISI 304 undergoes solution annealing (1,050–1,100°C) to eliminate sensitization and enhance intergranular corrosion resistance.
Surface Finishing: Electropolishing (for AISI 304) reduces surface roughness (Ra ≤0.4 μm), minimizing bacterial adhesion in food processing.

Applications

Precision Tooling: Double bar MG9-7 engraved stainless steel rods scribe for measurement instruments and industrial scribers.
Welding & Fabrication: Stainless steel bare welding filler rod (AISI 309L) for joining dissimilar metals like 304L and 439 stainless steels.
Architectural Frameworks: Custom stainless steel round rod bar (AISI 201) for cost-effective indoor railings and decorative structures.

Why Choose Our Stainless Steel Round Rod Bar?

Material Versatility: Choose from 201, 304, or 430 grades to balance corrosion resistance, strength, and budget.
Certified Precision: ASTM/EN-compliant production with full traceability (mill test reports included).
Custom Solutions: Tailor diameters (6–150 mm), lengths (up to 12 m), and finishes for seamless integration into stainless steel bare welding filler rod or scribe tools.
Technical Support: Free engineering consultations for corrosion prevention, welding parameters, and load calculations.
