StockSteel

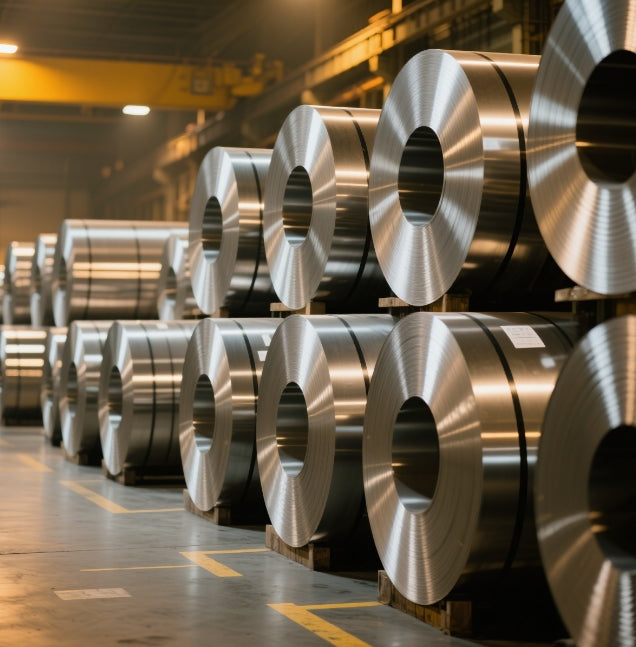

Premium Stainless Steel Coil – Mirror Finish 304

Premium Stainless Steel Coil – Mirror Finish 304

$1,520.00 SGD
$1,520.00 SGD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Thickness

Premium Stainless Steel Coil – Mirror Finish 304

Ideal for architectural, industrial, and decorative applications, our stainless steel coil stock combines aesthetic brilliance with unmatched durability. Crafted from SUS 304—an austenitic chromium-nickel alloy—this coil delivers exceptional corrosion resistance, formability, and longevity.



Specifications & Properties

Tables: Technical Data

Category Details
Material Grade SUS 304 (18% Cr, 8% Ni, ≤0.07% C)
Thickness Range Cold Rolled: 0.3–8.0 mm; Hot Rolled: 3.0–16.0 mm
Width Range 6–2,500 mm (Customizable: Slit/Trim to Size)
Surface Finish Mirror (8K/BA), 2B, No.4, HL, Hairline
Hardness (HB) ≤187 HB (Annealed); ≤200 HV
Tensile Strength ≥520 MPa
Yield Strength ≥205 MPa
Elongation (%) ≥40%
Density 7.93 g/cm³
Processing & Customization Options
Technique Cold Rolled, Hot Rolled, Bright Annealed (BA)
Protection PVC/PE Film (25–200 μm; White/Black/Blue)
Coil Dimensions ID: 150–610 mm; OD: 300–1,200 mm
Certifications ISO 9001, SGS, ASTM A240/A480

Detailed Performance Characteristics

1. Tensile Strength & Bendability

Tensile strength (≥520 MPa) ensures structural integrity under high stress, while elongation (≥40%) allows for deep drawing and complex forming without cracking. The alloy’s low carbon content (≤0.07%) enhances weldability and reduces carbide precipitation, maintaining corrosion resistance post-fabrication. For stainless steel tube coil applications, this enables seamless bending into helical or nested configurations for heat exchangers and hydraulic systems.



2. Why Stainless Steel Can Rust?

Despite its chromium oxide barrier, 304 stainless steel may corrode in chloride-rich environments (e.g., coastal areas or chemical plants). Factors include:



  • Chloride-Induced Pitting: Chloride ions penetrate the passive layer, causing localized corrosion.
  • Mechanical Damage: Scratches or abrasions expose untreated steel to oxidation.
  • Improper Cleaning: Residual iron particles or acidic cleaners accelerate rusting.
    Regular maintenance with non-abrasive cleaners preserves the mirror finish.

3. Weight Calculation Formula

Calculate coil weight using:
Weight (kg) = Thickness (mm) × Width (m) × Length (m) × Density (7.93 g/cm³).
Example: A 1.0 mm × 1,219 mm × 100 m coil weighs ≈970 kg.



4. Identification & Marking

Coils are laser-marked with:

  • Grade (304/304L)
  • Thickness/Width
  • Surface Finish (e.g., "BA" for Bright Annealed)
  • Batch Number for traceability.

Applications

  • Architectural: Elevator panels, column covers (mirror finish for reflective aesthetics).
  • Industrial: Stainless steel coiled pipe for heat exchangers, chemical tanks.
  • Consumer Goods: Kitchen sinks, appliance trim.

Why Choose Our Stainless Steel?

  1. Superior Corrosion Resistance: 18% chromium and 8% nickel composition resists acids, alkalis, and oxidation.
  2. Customization Flexibility: Tailored widths, lengths, and finishes (e.g., stainless steel tube coil for compact installations).
  3. Quality Assurance: Third-party audited (SGS/ISO), with MTC provided for every shipment.
  4. Global Logistics: 15–25-day delivery; seaworthy packaging to prevent transit damage.
  5. Sustainability: 100% recyclable; reduces replacement frequency in harsh environments.
View full details
