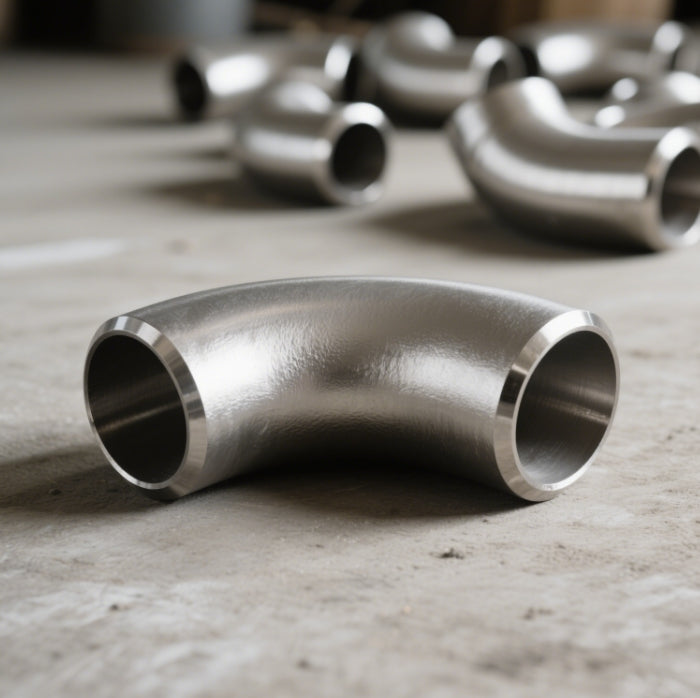

Seamless Stainless Steel 90 Degree Elbow
Premium Heavy-Duty Fit for Industrial & Marine Applications
Product Specifications
| Attribute | Details |
|---|---|
| Model Number | SS-ELB-90-5HD |
| Material | Stainless Steel (Grade 304/316L, ASTM A403) |
| Angle | 90° (Long/Short Radius Options Available) |
| Size | 5" NB (Nominal Bore), Compatible with OD 141.3mm |
| Wall Thickness | SCH 10S to SCH 160 (1.5mm to 40mm) |
| Pressure Rating | 150 lb to 2500 lb (ASME B16.9 Compliant) |
| Surface Finish | Mirror/Satin Polish (Ra 0.5-0.8μm), Electro-Polished for Corrosion Resistance |
| Hardness | 70-90 HRB (Rockwell B Scale) |
| Certifications | ASME, ANSI, DIN, ISO, NACE MR-01-75 |
| Connection Type | Butt-Welded (Seamless ERW/Fabricated Options) |
| Temperature Range | -50°C to 800°C (High-Temperature Alloy Options Available) |
Technical Properties
Tensile Strength
The stainless steel long radius elbow exhibits exceptional tensile strength ranging from 515 MPa to 860 MPa, depending on the alloy grade. This ensures resistance to deformation under extreme pressure, making it ideal for high-stress environments like oil refineries or stainless steel marine exhaust elbows systems.
Bending Strength
Engineered for smooth fluid dynamics, the elbow’s forged construction minimizes turbulence and maintains structural integrity under cyclic loading. Its bending strength exceeds 350 MPa, validated by third-party hydrostatic tests.
Weight Calculation Formula
Calculate the approximate weight using:
Weight (kg) = (OD - WT) × WT × 0.02466 × Length (mm)
(OD = Outer Diameter, WT = Wall Thickness)
Identification & Marking
Each elbow is laser-etched with:
- Material Grade (e.g., 316L)
- Size & Thickness (e.g., 5" SCH40)
- Certification Stamp (ASME B16.9, DIN 2605)
- Batch Number for traceability.
Why Stainless Steel Elbows Resist Rust?
While stainless steel is inherently corrosion-resistant, improper handling or harsh environments can cause localized rust. Key factors include:
- Chloride Exposure: Prolonged contact with seawater or de-icing salts may breach the passive chromium oxide layer.
- Galvanic Corrosion: Contact with dissimilar metals (e.g., carbon steel) in conductive environments.
- Surface Contamination: Iron particles from tools or grinding can initiate oxidation.
- Low Oxygen Environments: Stagnant water or crevices may reduce self-healing of the oxide layer.
Regular cleaning with pH-neutral solutions and avoiding abrasive tools ensures longevity.
Applications
- Industrial Piping: High-pressure chemical processing, HVAC systems.
- Marine Exhaust Systems: Stainless steel marine exhaust elbows withstand saltwater corrosion.
- Food & Pharma: Sanitary-grade stainless steel hose barb elbow designs for hygienic fluid transfer.
- Oil & Gas: Seamless construction for refinery pipelines.
Why Choose Our Stainless Steel Elbows?
- Unmatched Durability: Forged from aerospace-grade alloys with 100% radiographic testing.
- Customization: Tailored dimensions (1/2" to 48"), bends (R1D to R10D), and surface finishes.
- Global Compliance: Meets ASME, DIN, JIS, and ISO standards for seamless global integration.
- Eco-Friendly: 100% recyclable material with low lifecycle carbon footprint.
- Expert Support: 24/7 technical guidance for installation and maintenance.
