Product Overview

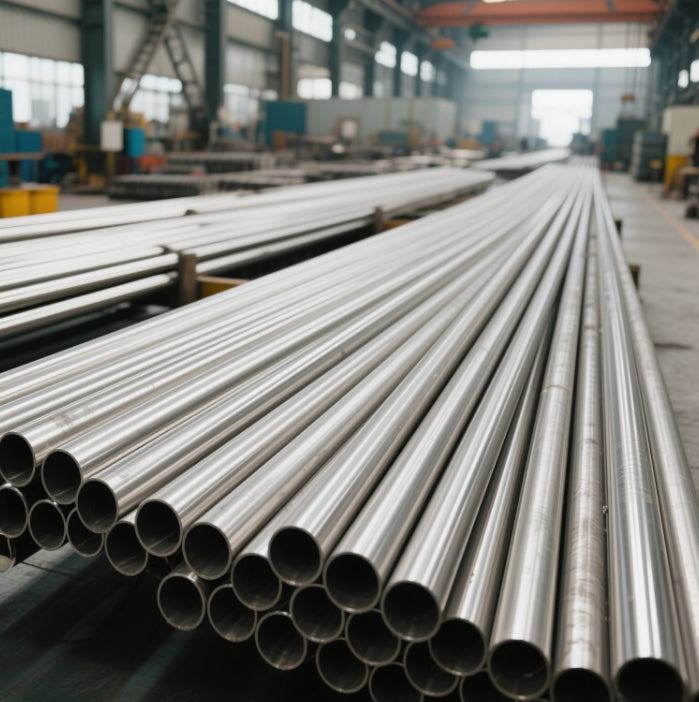

Our ASME-compliant 304/316L stainless steel pipes are engineered for superior performance in demanding industrial, marine, and chemical environments. With exceptional corrosion resistance, high-temperature stability, and mechanical strength, these pipes are ideal for applications ranging from oil and gas pipelines to medical equipment and food processing systems.
Technical Specifications
| Property | 304 Stainless Steel | 316L Stainless Steel |
|---|---|---|
| Standards | ASTM A312, ASME B36.19 | ASTM A312, ASME B36.19 |
| Schedule | Schedule 10 stainless steel pipe (WT: 1.2–8.6 mm) | Schedule 10 stainless steel pipe (WT: 1.2–8.6 mm) |
| Hardness (Rockwell B) | 70–90 HRB | 70–90 HRB |
| Outer Diameter (OD) | 6–2500 mm | 6–2500 mm |
| Wall Thickness (WT) | 0.8–50 mm | 0.8–50 mm |
| Surface Finish | Polished, Brushed, Matte | Polished, Brushed, Matte |
| Processing Technology | Seamless/Welded (TIG, ERW) | Seamless/Welded (TIG, ERW) |
Key Mechanical Properties
Tensile Strength
- 304: 485–620 MPa | 316L: 485–620 MPa
The high tensile strength ensures resistance to deformation under load, making these pipes suitable for high-pressure systems like hydraulic lines and chemical reactors.
Bending Strength
- 304/316L: Excellent cold-forming capabilities. Compatible with stainless steel pipe bender tools for precise angles (up to 180°) without cracking. Ideal for complex installations in HVAC and shipbuilding.
Material Properties & Advantages
-
Corrosion Resistance
- 316L contains 2–3% molybdenum, enhancing resistance to chlorides, acids, and seawater.
- 304 offers general-purpose resistance to oxidation and organic chemicals.
-
High-Temperature Stability
- Retains structural integrity at temperatures up to 870°C (304) and 800°C (316L).
-
Hygienic & Easy to Clean
- Smooth surfaces prevent bacterial growth, compliant with FDA and EHEDG standards.
Weight Calculation Formula
Weight (kg/m) = (OD – WT) × WT × 0.02491
Example: For a schedule 10 stainless steel pipe (OD: 114.3 mm, WT: 6.0 mm):
(114.3 – 6.0) × 6.0 × 0.02491 = 16.1 kg/m
Why Stainless Steel Pipes Corrode?
Despite their name, stainless steel can rust under specific conditions:
- Chloride Exposure: Prolonged contact with seawater or de-icing salts induces pitting.
- Low Oxygen Environments: Prevents chromium oxide layer formation, accelerating corrosion.
- Improper Welding: Unpassivated welds create vulnerable zones for rust.
Identification & Marking
- Laser Etching: ASTM-compliant labels include grade (304/316L), size, and heat number.
- Color Coding: Blue (316L) or yellow (304) bands for quick visual identification.
Applications
- Oil & Gas: Pipelines, valves, and stainless steel pipe flange connections.
- Medical: Implants, surgical tools, and sterile fluid transfer systems.
- Architecture: Handrails, facades, and structural supports.
Why Choose Our Stainless Steel Pipes?
- Certified Quality: Compliant with ASME, ASTM, and ISO standards. Full traceability with mill test reports.
- Customization: Tailored dimensions, bends (via stainless steel pipe bender), and flange profiles.
- Fast Delivery: Large inventory of schedule 10 stainless steel pipe in 304/316L grades.
- Technical Support: 24/7 engineering assistance for design and installation.
