Superior Stainless Steel Plate Grades | SS 304/316/2205 & ASME A240
Superior Stainless Steel Plate Grades | SS 304/316/2205 & ASME A240
Couldn't load pickup availability
Product Detail Page: Superior Stainless Steel Plate Grades | SS 304/316/2205 & ASME A240
Product Overview

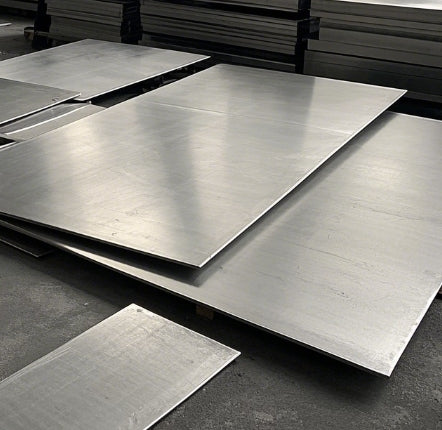

Our stainless steel plate grades are engineered for exceptional performance in demanding environments, complying with ASME A240 standards. Available in 304, 316, and 2205 duplex alloys, these plates combine corrosion resistance, mechanical strength, and versatility for applications ranging from stainless steel plated brass components in electrical systems to structural stainless steel 2 sections plate designs. With customizable thicknesses (0.3–150mm) and global certifications, they are trusted in marine, chemical, and architectural industries.
Specifications & Properties
| Parameter | 304 Grade | 316 Grade | 2205 Duplex |
|---|---|---|---|
| Thickness | 0.3–150mm | 0.3–150mm | 3–50mm |
| Width | 1000–2000mm | 1000–2000mm | 1000–2000mm |
| Surface Finish | 2B, BA, No.4, Mirror | 2B, BA, No.4, Mirror | 2B, BA, Pickled |
| Hardness (Brinell) | ≤187 HB | ≤217 HB | ≤290 HB |
| Tensile Strength | ≥515 MPa | ≥515 MPa | ≥620 MPa |
| Yield Strength | ≥205 MPa | ≥220 MPa | ≥450 MPa |
| Elongation | ≥40% | ≥40% | ≥25% |
| Density | 7.93 g/cm³ | 8.00 g/cm³ | 7.80 g/cm³ |
| Certifications | ASTM A240, EN 1.4301 | ASTM A240, EN 1.4404 | ASTM A240, EN 1.4462 |
Technical Attributes
Tensile & Bend Strength
- 304 Grade: Delivers 515 MPa tensile strength and 780 MPa bend strength, ideal for stainless steel 2 sections plate designs in architectural frameworks and food processing equipment.
- 316 Grade: Enhanced by 2–3% molybdenum, it achieves 515 MPa tensile strength and resists pitting in chloride-rich environments, making it suitable for marine-grade stainless steel plated brass hardware.
- 2205 Duplex: Combines austenitic and ferritic properties for 620 MPa tensile strength, perfect for chemical tanks and offshore platforms requiring high stress resistance.
Weight Calculation
Weight (kg) = Thickness (mm) × Width (m) × Length (m) × Density (g/cm³).
Example: A 304 plate (10mm thick, 1m × 1m) weighs 79.3 kg (10 × 1 × 1 × 7.93).
Identification Marking
Each plate is laser-etched with Grade (304/316/2205), ASME A240 Standard, Heat Number, and Supplier Code for full traceability.
Why Stainless Steel Rusts? Key Causes & Solutions
Even premium grades can corrode under extreme conditions:
- Chloride Exposure: Coastal or de-icing environments cause pitting in 304. 316/2205 plates resist this due to molybdenum and nitrogen.
- Mechanical Damage: Scratches disrupt the chromium oxide layer. Use polished finishes (Mirror/BA) for stainless steel plated brass components to minimize damage.
- Galvanic Corrosion: Contact with carbon steel in humidity accelerates rust. Isolate materials with non-conductive spacers.
- Chemical Contamination: Residual acids degrade passive films. Clean stainless steel 2 sections plate surfaces with pH-neutral solutions.
- High-Temperature Oxidation: Temperatures above 800°C deplete chromium. 2205 duplex retains integrity up to 300°C.
Applications
- Electrical Systems: Stainless steel plated brass connectors for corrosion-free conductivity in marine and industrial settings.
- Architecture: Stainless steel 2 sections plate structures for bridges, facades, and HVAC systems.
- Chemical Processing: 316/2205 plates for reactors, pipelines, and chloride-rich environments.
- Food & Pharma: Hygienic 304 plates with 2B/BA finishes for equipment and storage tanks.
Why Choose Our Stainless Steel Plates?
- Grade Mastery: From cost-effective 304 to ultra-strong 2205, tailored for diverse industrial demands.
- Global Compliance: ASME A240, ASTM, and EN certifications ensure seamless integration into international projects.
- Ready Inventory: 0.3–150mm plates in 2B, BA, and Mirror finishes with 7–10-day global delivery.
- Custom Fabrication: Precision cutting, edge-bevelling, and perforation for stainless steel 2 sections plate or plated brass components.
- Lifetime Support: Free corrosion-resistance guides and material selection consultations.
